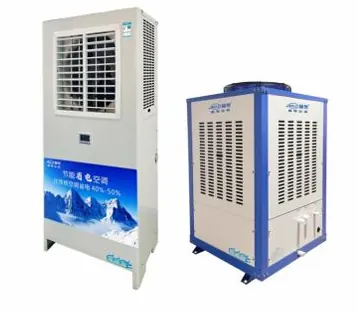

Column Air Conditioner (5HP/45000BTU)

Column Air Conditioner (5HP/45000BTU)
energy saving
APP Smart IoT
high air volume
safety protection

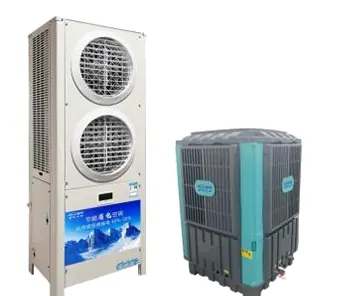

Product ModelJD-26LNC
rated cooling capacity26KW
rated power4.5KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume6000m³/h
Input voltage380V/50Hz
input current10A
water storage capacity50L
evaporation rate20L/h
rated flow rate20-50L/min
protection classIPX4
refrigerantR22/R410A
noise≤53dB
Indoor unit dimensions780*540*1800mm
Outdoor unit dimensions800*800*1350mm
Applicable area150-200m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJD-26LNF
rated cooling capacity26KW
rated power4.5KW
airflow modetop exhaust
Fan typecentrifugal
Maximum air volume5000m³/h
Input voltage380V/50Hz
input current10A
water storage capacity50L
evaporation rate20L/h
rated flow rate20-50L/min
protection classIPX4
refrigerantR22/R410A
noise≤68dB
Indoor unit dimensions780*580*1450mm
Outdoor unit dimensions800*800*1350mm
Applicable area150-200m²
outlet diameter345*210mm
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection

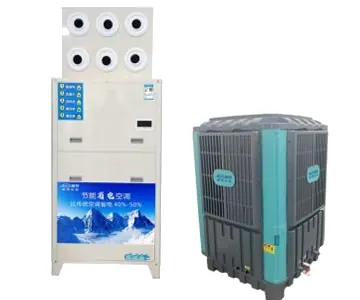

Product ModelJD-26LNLS
rated cooling capacity26KW
rated power4.5KW
airflow modeJet nozzle
Fan typeCentrifugal
Maximum air volume5000m³/h
Input voltage380V/50Hz
input current10A
protection classIPX4
refrigerantR22/R410A
noise≤68dB
Indoor unit dimensions780×580×1950mm
Outdoor unit dimensions800×800×1350mm
Applicable area150-200m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection

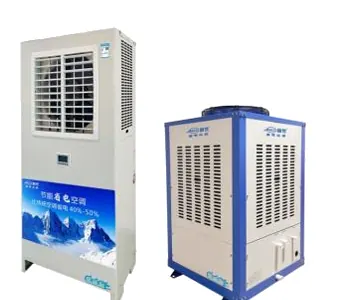

Product ModelJDF-26LNC
rated cooling capacity26KW
rated power4.5KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume5000m³/h
Input voltage380V/50Hz
input current10A
protection classIPX4
refrigerantR22/R410A
noise≤53dB
Indoor unit dimensions780*540*1800mm
Outdoor unit dimensions770*500*1380mm
Applicable area150-200m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJD-26LN
rated cooling capacity26KW
rated power4.5KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume4000m³/h
Input voltage380V/50Hz
input current10A
protection classIPX4
refrigerantR22/R410A
noise≤38dB
Indoor unit dimensions780*540*1800mm
Outdoor unit dimensions1000*1000*1460mm
Applicable area150-200m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection

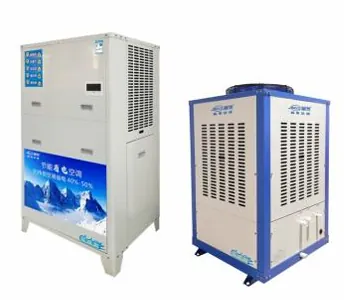

Product ModelJDF-26LNF
rated cooling capacity26KW
rated power4.5KW
airflow modetop exhaust
Fan typecentrifugal
Maximum air volume5000m³/h
Input voltage380V/50Hz
input current10A
protection classIPX4
refrigerantR22/R410A
noise≤68dB
Indoor unit dimensions780*580*1450mm
Outdoor unit dimensions770*500*1380mm
Applicable area150-200m²
outlet diameter345*210mm

Column Air Conditioner (8HP/72000BTU)

Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJD-38LNC
rated cooling capacity38KW
rated power6.2KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume7000m³/h
Input voltage380V/50Hz
input current15A
water storage capacity50L
evaporation rate20L/h
rated flow rate20-50L/min
protection classIPX4
refrigerantR22/R410A
noise≤53dB
Indoor unit dimensions920*540*1800mm
Outdoor unit dimensions800*800*1350mm
Applicable area200-300m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJD-38LNF
rated cooling capacity38KW
rated power6.2KW
airflow modetop exhaust
Fan typecentrifugal
Maximum air volume6000m³/h
Input voltage380V/50Hz
input current15A
water storage capacity50L
evaporation rate20L/h
rated flow rate20-50L/min
protection classIPX4
refrigerantR22/R410A
noise≤68dB
Indoor unit dimensions920*685*1600mm
Outdoor unit dimensions800*800*1450mm
Applicable area200-300m²
outlet diameter385*295mm
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJDF-38LNCC
rated cooling capacity38KW
rated power6.2KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume6000m³/h
Input voltage380V/50Hz
input current15A
protection classIPX4
refrigerantR22/R410A
noise≤53dB
Indoor unit dimensions750*540*2000mm
Outdoor unit dimensions770*500*1380mm
Applicable area200-300m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJD-38LN
rated cooling capacity38KW
rated power6.2KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume8000m³/h
Input voltage380V/50Hz
input current15A
protection classIPX4
refrigerantR22/R410A
noise≤45dB
Indoor unit dimensions750*540*2000mm
Outdoor unit dimensions1000*1000*1460mm
Applicable area200-300m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection

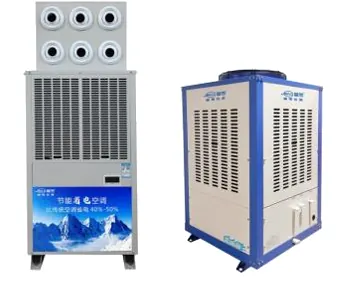

Product ModelJD-38LNLS
rated cooling capacity38KW
rated power6.2KW
airflow modejet nozzle
Fan typecentrifugal
Maximum air volume6000m³/h
Input voltage380V/50Hz
input current15A
protection classIPX4
refrigerantR22/R410A
noise≤68dB
Indoor unit dimensions920*680*2100mm
Outdoor unit dimensions800*800*1350mm
Applicable area200-300m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJDF-38LNC
rated cooling capacity38KW
rated power6.2KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume6000m³/h
Input voltage380V/50Hz
input current15A
protection classIPX4
refrigerantR22/R410A
noise≤53dB
Indoor unit dimensions920*540*1800mm
Outdoor unit dimensions770*500*1380mm
Applicable area200-300m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJDF-38LNF
rated cooling capacity38KW
rated power6.2KW
airflow modetop exhaust
Fan typecentrifugal
Maximum air volume6000m³/h
Input voltage380V/50Hz
input current15A
protection classIPX4
refrigerantR22/R410A
noise≤68dB
Indoor unit dimensions920*685*1600mm
Outdoor unit dimensions770*500*1380mm
Applicable area200-300m²
outlet diameter380*300mm

Column Air Conditioner (10HP/90000BTU)

Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection

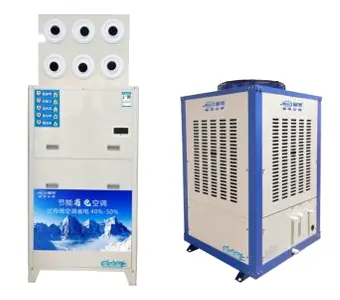

Product ModelJD-45LNLS
rated cooling capacity45KW
rated power9.0KW
airflow modejet nozzle
Fan typecentrifugal
Maximum air volume10000m³/h
Input voltage380V/50Hz
input current18A
protection classIPX4
refrigerantR22/R410A
noise≤68dB
Indoor unit dimensions920*680*2100mm
Outdoor unit dimensions1000*1000*1680mm
Applicable area300-400m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJD-45LNCC
rated cooling capacity45KW
rated power9.0KW
airflow modeside exhaust
Fan typeaxial-flow
Maximum air volume10000m³/h
Input voltage380V/50Hz
input current18A
protection classIPX4
refrigerantR22/R410A
noise≤53dB
Indoor unit dimensions750*540*2000mm
Outdoor unit dimensions1000*1000*1680mm
Applicable area300-400m²
Column Air Conditioner
energy saving
APP Smart IoT
high air volume
safety protection
Product ModelJDI-45LNLS
rated cooling capacity45KW
rated power9.0KW
airflow modejet nozzle
Fan typecentrifugal
Maximum air volume10000m³/h
Input voltage380V/50Hz
input current18.0A
protection classIPX4
refrigerantR410A
noise≤68dB
Indoor unit dimensions1315*705*2120mm
Outdoor unit dimensions1540*800*1450mm
Applicable area300-400m²

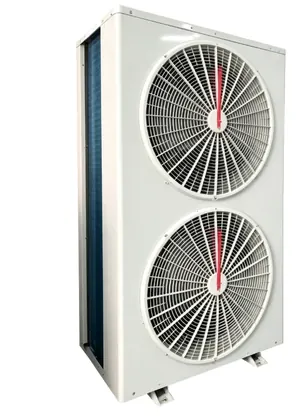

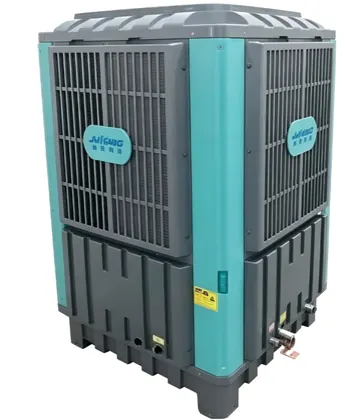

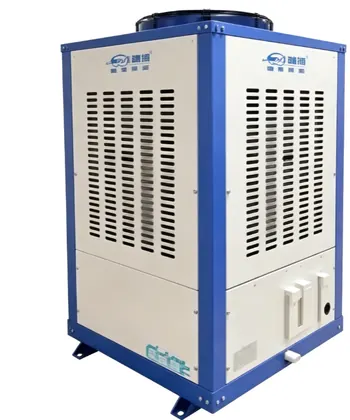

Outdoor unitOutdoor unitOutdoor unit

Flexible matching with 3 outdoor unit options, with custom higher-capacity solutions available upon request
